14.
Bag Rollers:
The bag is routed between the two rollers
and is pulled through as the rollers turn.
Pull and hold the roller drive control lever
in to turn the rollers, pull the bag through
the rollers and move the machine into the
grain in the bag. Pull the pop valve out to
provide pressurised oil to the wheel motors
to assist in moving the machine into the
bag.
Depress the pop valve to stop the wheels
and release the roller control to stop the
rollers.

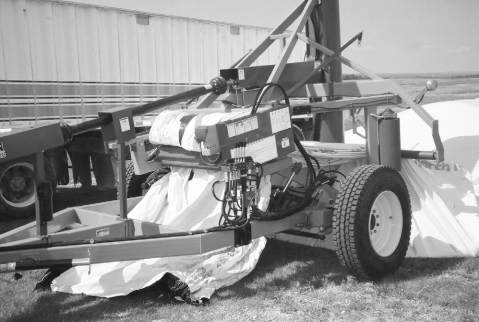

Fig. 39 PICK-UP ASSEMBLY HEIGHT
Pulling

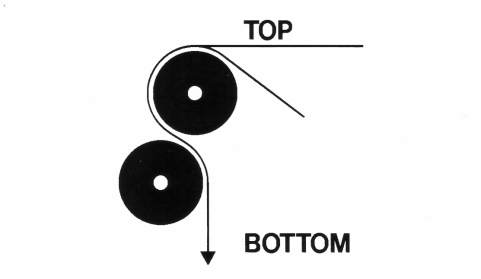

Routing

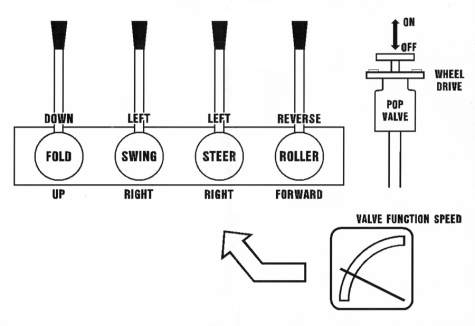

Schematic
