39
13.
Roller Position:
The idler rollers on the bottom of the pick-up
assembly are designed to be 2 inches (50
mm) below the gathering augers to minimize
the chance of the augers contacting the plas-
tic bag. Use the frame fold circuit to set the
idler rollers about 2 inches (50 mm) above the

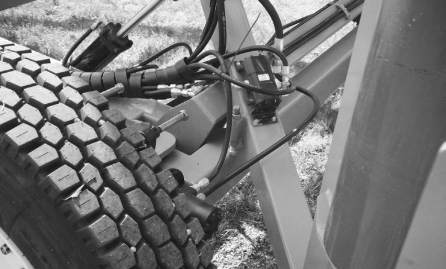

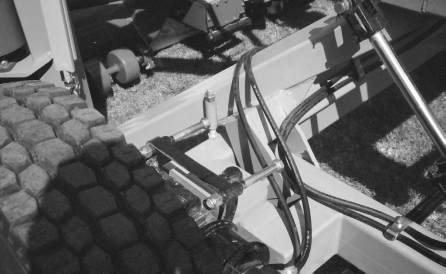

ground. Adjust frame stop bolts to set idler
rollers and prevent the frame frommoving.
Be
sure to tighten jam nuts to their specified
torque.

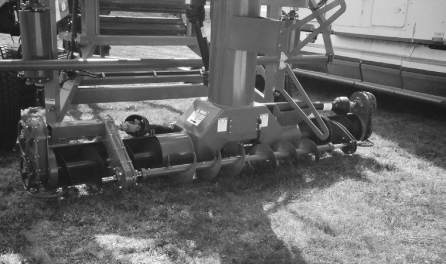

Fig. 38 PICK-UP ASSEMBLY HEIGHT
Idler Roller
Pick-up
Frame Stop - Right
Frame Stop - Left
2 inches
(50 mm)
