41
15.
Roller Speed:
The speed of the roller can be set and ad-
justed appropriately for the loading/unload-
ing conditions. Use the system flow control
to adjust the roller and wheel drive speed.
Pull and hold lever to drive rollers. Increase
in small increments to keep the pick-up and
unloading system full. Decrease the speed
if the machine starts shaking.

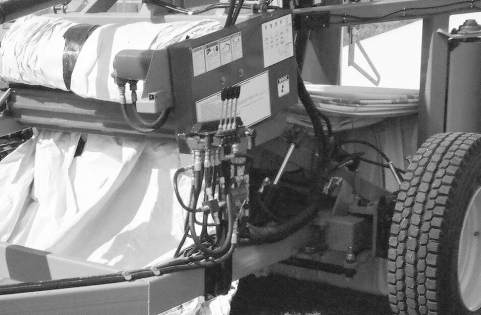

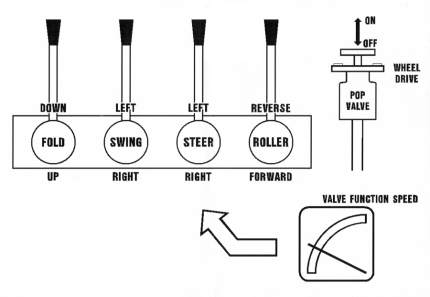

Fig. 40 ROLLER SPEED
Controls
Schematic
Operation
