5.2.4 FRAME POSITION BOLTS
The machine is designed to position the idler
rollers approximately 2 inches (50 mm) above
the surface as the pick-up assembly moves into
the bag. Tilt the frame back until it is at the de-
sired angle, height or position.
To set angle or position, follow this procedure:
1. Clear the area of bystanders, especially
small children.
2. Place all controls in neutral or off, stop en-
gine, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing, or unplug-
ging.
3. Loosen jam nuts on each position bolt.
4. Turn position bolts until they seat against
the frame.
5. Tighten jam nuts to their specified torque.

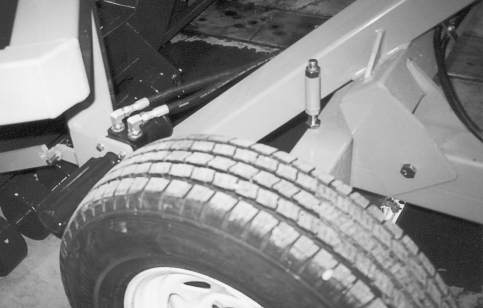

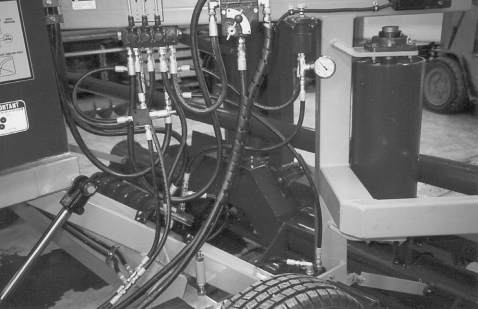

Fig. 75 POSITION BOLTS (Typical)
Right
Left
