Operating Hints:
a. Use the bolts on each side of the frame
to set the guide rollers 2 inches (50 mm)
above the ground.
b. Use the flow divider to set the speed of the
rollers and drive wheels. Do not run too
fast and overload the system.
c. Use the relief valve to set the driving force
on the wheels.

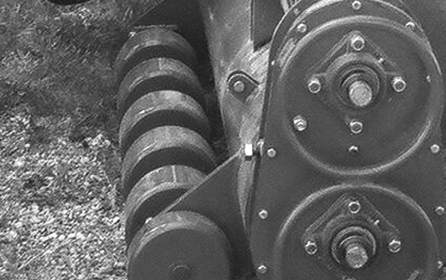

Roller

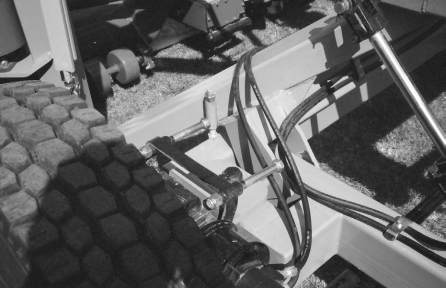

Fig. 46 HEIGHT
Bolts (Typical)

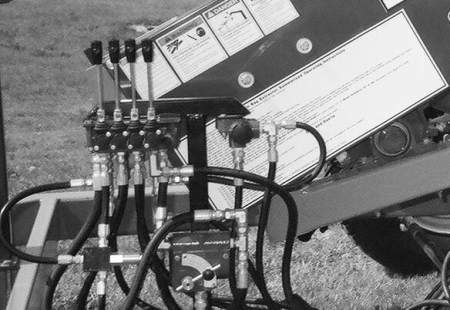

Fig. 47 CONTROLS
2 inches
(50 mm)
