45
21.
Bag Clean-Up:
When finishing the bag, follow this proce-
dure:
a. Raise the pick-up assembly 6 inches
(150 mm) above the surface.
b. Depress the pop valve to stop wheel
drive.
c. Disengage both wheel drives.
d. Let the rollers pull most of the remain-
der of the bag through the machine but
leave the last 10 feet (3 m).
e. Cut open the last 10 feet (3 m) of the
bag.
f. Turn the rollers backward to provide
some slack to the bag to work around.
g. Cut the front section of the bag off at the
gathering rollers..
h. Drive tractor forward 3 feet (1 m) and
lower the pick-up assembly to its down
position.
i. Turn tractor off and set park brake.
j. Disconnect the lower left pick-up as-
sembly driveline and mount to its stor-
age bracket.
k. Start the tractor and engage PTO. Run
the engine at mid RPM.
l. Use a scoop shovel to pick up remain-
ing grain from the bag and put it into the
hoppers.
m. When grain is cleaned up, stop PTO.
n. Remove bag.
o. Fold up machine.
p. Install top auger braces.
q. Install bottom auger support braces.
r. Move to next location.
Fig. 45 FINISHING

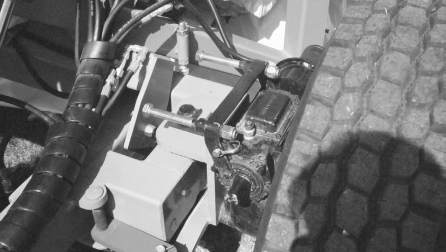

Wheel Drive Disengaged (Typical)

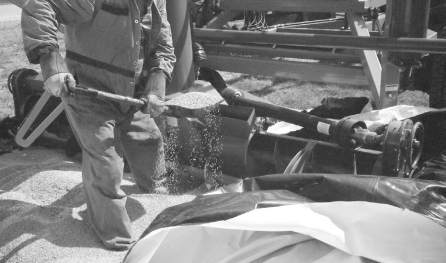

Cleaning Up
Hopper

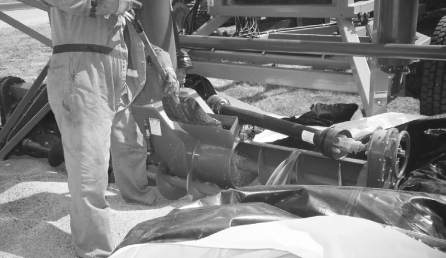

Cut Open Bag

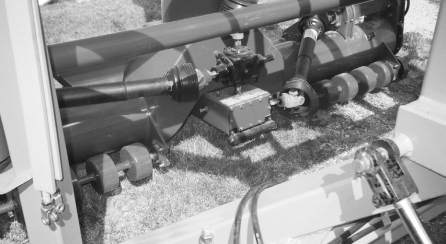

Disconnect Driveline
