12. Thread the bag into the extractor:
a. Lay the slit bag out on the ground.
b. Pull the bag under the pick-up assembly and
under the guide wheels on the rear of the
assembly.
c. Thread the bag up behind the pick-up as-
sembly and over the top of the cross roller
and inside the side vertical guide rollers.
d. Thread the bag over the top of the gathering
rolls and back between them.
Fig. 16 BAG THREADING

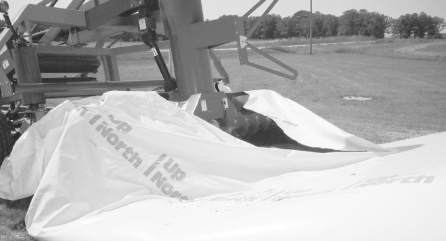

Under and Around Pick-Up

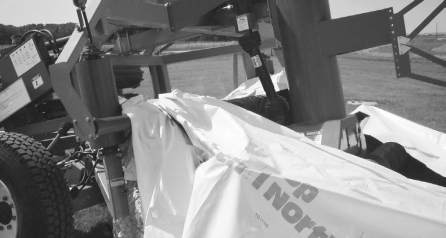

Over Cross Roller

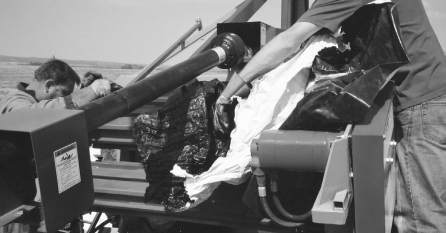

Into Gathering Rollers

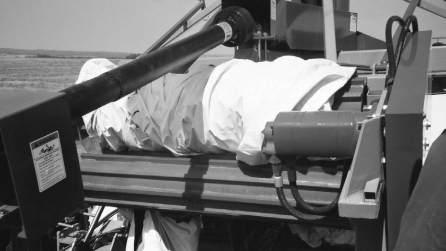

Gathering Rollers
Schematic
IMPORTANT
Use the roller drive system to use the
rollers to move the bag through the
machine. Move in small increments
to evenly distribute the bag across the
rollers.
