26
10. Start moving the end of the bag under the gath-
ering augers and rollers.
11. Spread the bag gathering rolls:
a. Remove the spreading tool from its storage
position.
b. Insert tool into bracket and raise the top
roller on the right side.
c. Support the roller frame with the hinged lock
bracket.
d. Repeat with the left end of the roller and lock
in the up position.

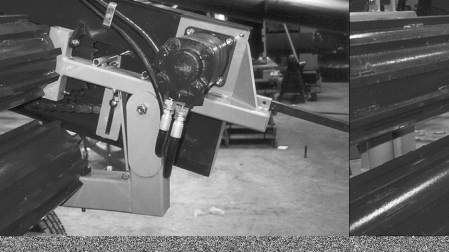

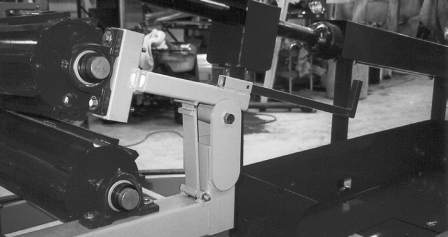

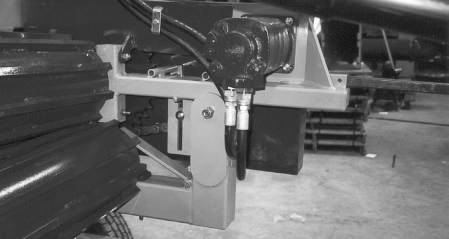

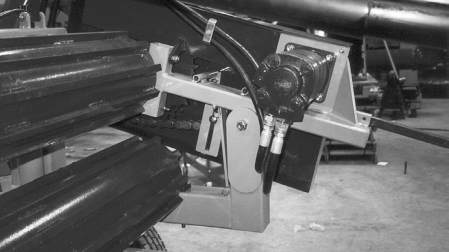

Fig. 15 BAG GATHERING ROLLERS
Stored Tool
Right Side - Lock
Left Side
Left Side - Locked
IMPORTANT
If the bag was filled too full, there will not
be enough empty bag to start threading
it through the rollers. If that is the case,
sufficient grain will have to be removed
by hand to free up enough of the end to
thread the bag through the rollers.

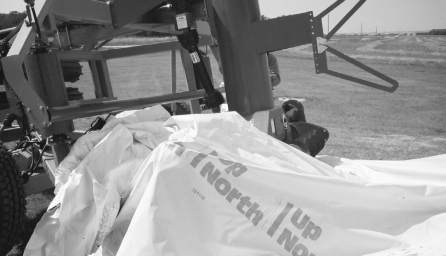

Fig. 14 BAG
