22
5.
When extractor is in position inside bag, en-
gage the wheel drives:
a.
Remove the pin from wheel drive engage
bracket.
b. Pull bracket bolts up to engage gears in
drive.
c. Install lock pin through engage bracket to
keep drive gears engaged.
d. Reverse the above procedure to dis-
engage drive gears before moving or
transporting machine with tow vehicle to
prevent skidding tires. Bolts should be
horizontal for transporting.

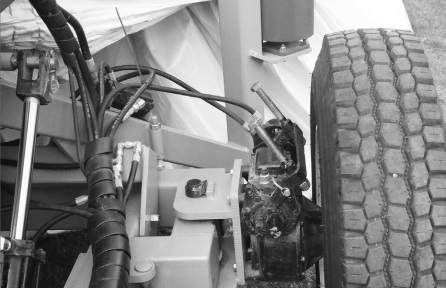

Right - Towable
Fig. 6 Wheel Drive

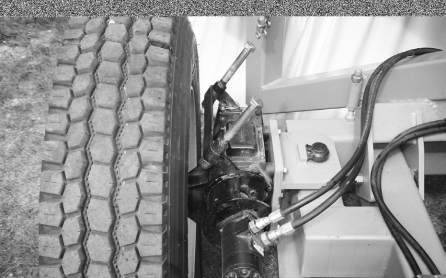

Right - Driving

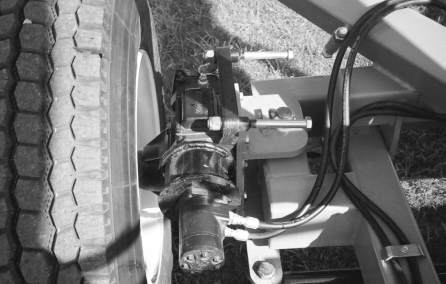

Left - Driving
NOTE
It may be necessary to move wheels
or turn hydraulics to allow drive gears
to mesh.
