3.
Attach the bottom driveline to the left side
loading and distributing auger drive if it was
removed at the end of the previous clean-up:
a.
Depress the pin on the yoke to retract the
yoke lock pin.
b. Mount the yoke on its storage bracket.
4.
Remove steering transport lock from drive
wheel frame:
a.
Remove retainer from anchor pin.
b. Raise lock bracket.
c. Swing bracket forward and place over its
storage pin.
d. Install retainers through storage pin.
e. Reverse this procedure when preparing
for transport so the wheels track straight
behind the tow unit.
Working Position

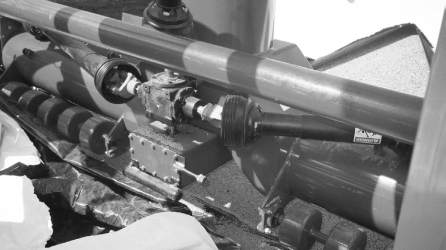

Fig. 4 LEFT BOTTOM DRIVELINE
Stowed
Locked - Transport
Unlocked - Steerable

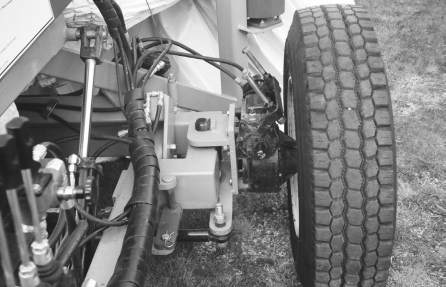

Fig. 5 WHEEL STEERING TRANSPORT LOCK
