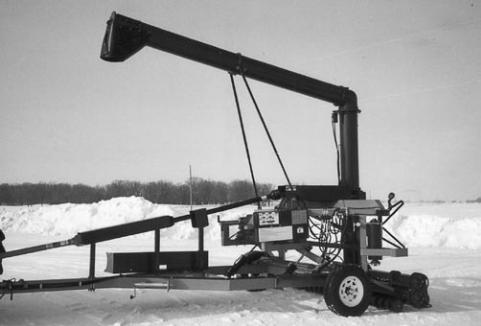

Pick-up Assembly
21.
Pick-up Assembly Covers:
The machine is designed with 2 covers that
go over the cross and gathering augers
when it is necessary to go into the bag
during fnal clean up.
a. Stop PTO and place hydraulic circuit in
neutral. Stop engine and remove key
from ignition.
b. Open bag to access pick-up assembly.
c. Remove covers from their storage posi-
tion on the front of the frame.
d. Install and secure over each side.
e. Use a scoop shovel to pick up the re-
maining grain and place it in the clean-
up chute.
f. Engage the PTO to convey the rest of
the grain into the truck.
Stored
Installed/Chute

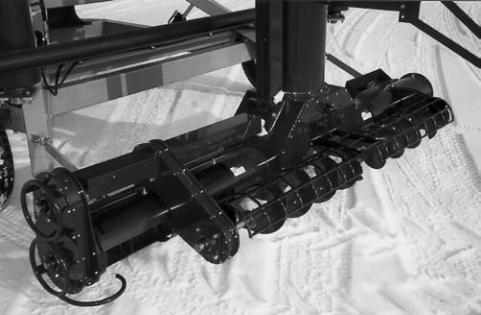

Fig. 42 COVERS
