SETTING AND ADJUSTING YOUR CROPSAVERS

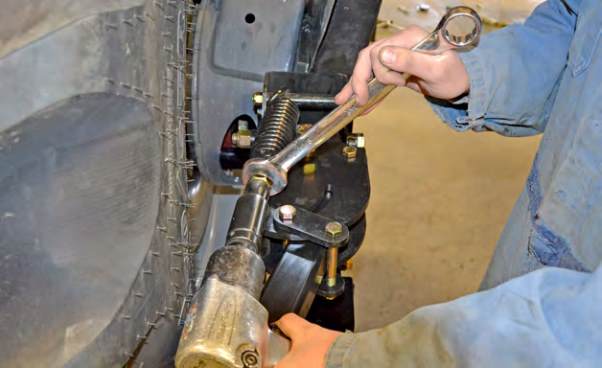

Adjust spring tension to set the floating weight of the Cropsaver. Tighten jam nut
once adjusted so spring doesn’t slide and Cropsaver floats properly.
Although it depends on conditions Tridekon recommends the tension to be
set so it takes about 5lbs of lift to lift the tip of the cone.
Use this bolt to set the height of the Cropsaver. Set the height with this bolt before setting the spring tension.
See Crop Height Adjustment section (Page 5) for further instruction. Tighten jam nut once adjusted.
1.
2.
3.
Page 13

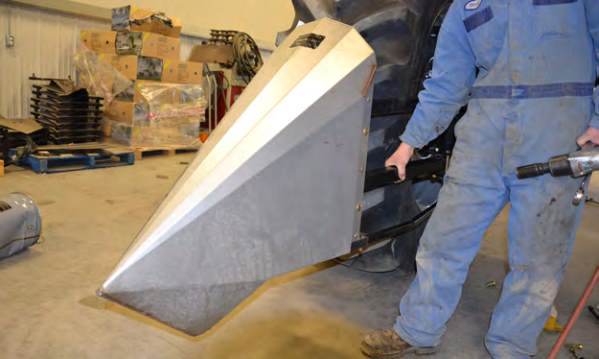

Note:
Cropsaver doesn’t need to be centered in-front of the tire – as long as it covers the entire width
of the tire. The back panel of the Cropsaver should be 90° to the sidewall of the tire.
