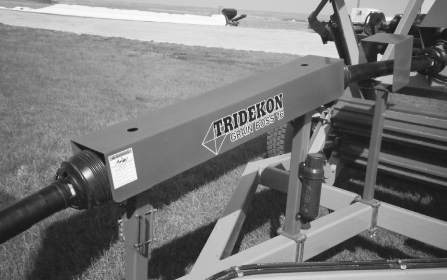

Fig. 55 TELESCOPING SECTION (Typical)
40 Hours or Weekly
1. Grease the telescoping section of the PTO and
secondary shafts.
2. Grease bearings with one shot of grease.
a. Guide rollers.
b. Grease horizontal input support bearings.

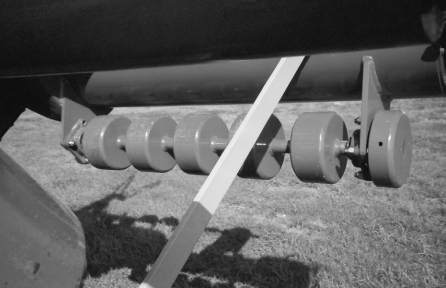

Fig. 56 GUIDE ROLLERS
Front
WARNING
Machine is shown with guard re-
moved or opened for illustrative
purposes only. Do not operate
machine with guard removed or
opened.
Rear

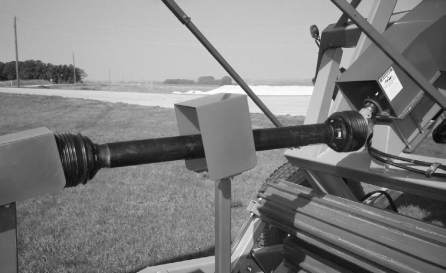

Fig. 57 SUPPORT BEARINGS
