Fig. 51 PICK-UP ASSEMBLY SUPPORT BRACKETS
6. Install pick-up assembly support brackets on
each side.
7. Disengage both wheel drive systems. Bolts
must be horizontal.
8. Install steering linkage lock bracket to maintain
tracking.
9. Do not allow riders on the machine or tractor.
10. Always use a 3/4 ton or larger truck to provide
sufficient control when transporting.

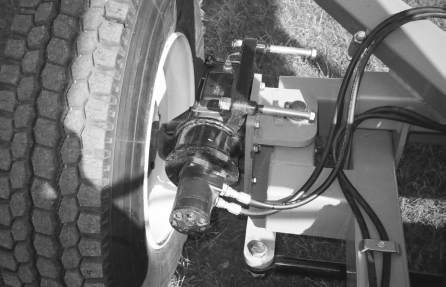

Fig. 52 WHEEL DRIVES (Typical)

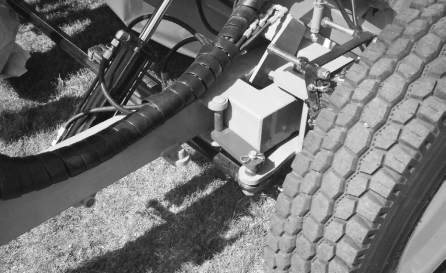

Fig. 53 STEERING LOCK BRACKET
