4.8.2 TRUCK
When attaching the machine to a truck, follow this
procedure:
1. Clear the area of bystanders, especially small
children.
2. Make sure there is enough room and clearance
to safely back up to the machine.
3. Slowly back the truck until the hitch and ball are
aligned.
a. Install the drawbar pin through the hitch.
b. Install the retainer through the drawbar pin.
4. Cross the safety chains under the hitch when
attaching to support the hitch in the event of
failure and to prevent unexpected separation.

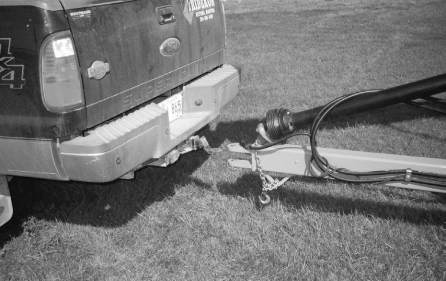

Fig. 29 ALIGNED
Pin
Retainer

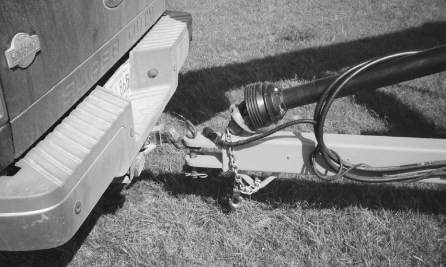

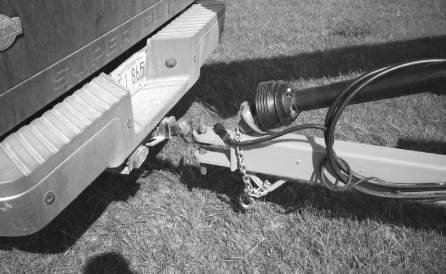

Fig. 30 DRAWBAR PIN

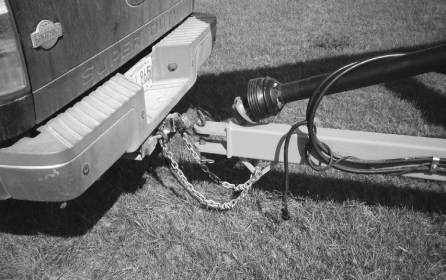

Fig. 31 SAFETY CHAIN
