9.
Connect the Hydraulic System:
a. Use a clean cloth or paper towel to clean
the dirt and build-up from around the
couplers and male tips.
b. Insert the male tips into the couplers.
Make sure they are locked in place.
c. Route the hoses along the hitch and se-
cure in place with clips, tape or tie wraps.
Be sure they do not drop to the ground or
get pinched when turning. Provide suf-
ficient slack for turning.

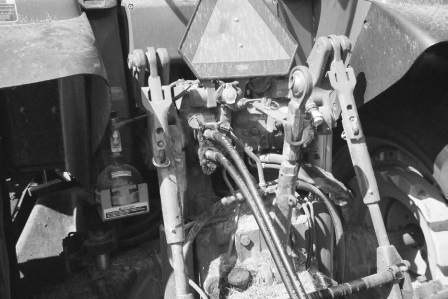

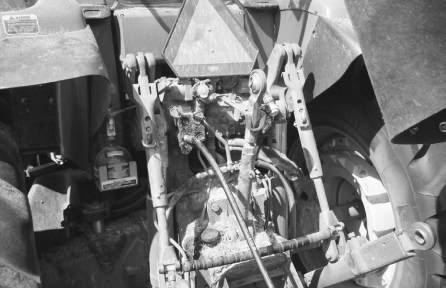

Hose 1
Hose 2
Fig. 25 HYDRAULIC HOSES
