4.5 MACHINE PREPARATION
1.
Remove discharge auger anchor brackets:
a.
Remove auger anchor brackets.
b. Disconnect auger lock pin on the auger.
c. Remove the middle pin in the middle of
the bracket.
d. Telescope bracket into its shortest position
and fold it back against the frame.
e. Reinstall middle pin into bracket.
f. Repeat on the other side.

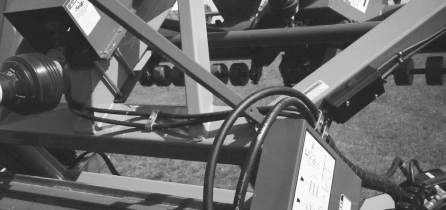

Anchored
Auger Lock Pin
Middle Pin
Telescoped
Stowed
Both Stowed

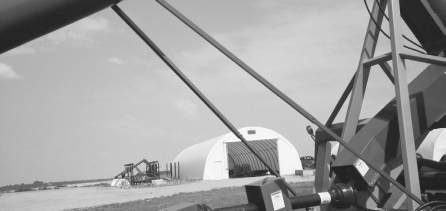

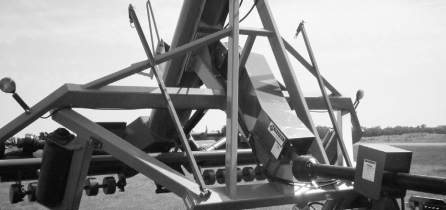

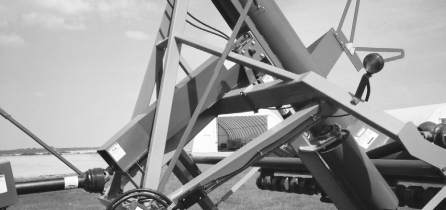

Fig. 2 DISCHARGE AUGER ANCHOR BRACKETS
